Magnetorquer Coil Winding Machines
Technical Precision for the Production of Magnetorquer Coils

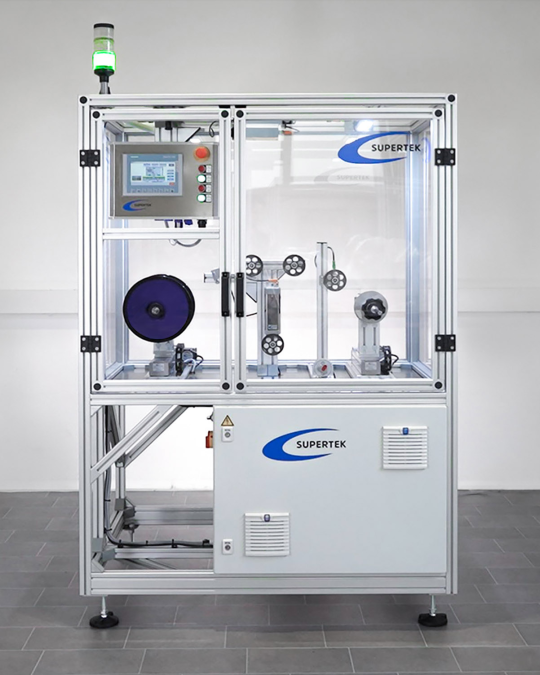

Our Magnetorquer Coil Winding Machines are developed and manufactured according to the specific requirements of our customers to produce magnetorquer coils used for satellite attitude control and stabilization. The manufacturing process of these coils demands the highest precision, constant winding tension and exact control of the winding pattern to ensure reliable performance in operation.
Technical Concept
The machines are designed to handle fine wire with typical diameters ranging from 0.05 mm to 0.3 mm. This makes them suitable for applications in both small CubeSats and larger satellite projects. Thanks to precise tension control, the wire remains consistently tensioned throughout the winding process, minimizing wire breakage and winding defects.
The winding machines feature variable speed control, allowing different wire materials (e.g. enameled copper wire, special alloys) and various spool geometries to be processed. Control is provided via a digital PLC unit with a touchscreen panel, enabling flexible parameterization of winding speed, winding pattern (e.g. cross or layer winding) and tension control.
Of course, we tailor our machines to individual customer requirements. Whether regarding the winding pattern, spool geometry or special control system demands.
Technical Features at a Glance
• Fine wire winding: For wire diameters of approximately 0.05 mm to 0.3 mm.
• Precise tension control: Electronically regulated for constant tension.
• Variable winding speed: Adaptable to different materials and production processes.
• Flexible winding patterns: Cross or layer winding, individually configurable.
• Compatibility with various spool types: For diverse applications.
• Industrial-grade control: PLC with touchscreen and recipe management for repeatable processes.
• Industry 4.0 interface: Enables integration into digital production environments.
Areas of Application
Our Magnetorquer Coil Winding Machines are the first choice for aerospace applications. They meet the highest requirements for precision, process reliability and flexibility. Essential for producing magnetorquers for satellites and other high-tech uses.
Winding technology for magnetorquer coils demands the utmost in precision, reproducibility and process reliability. Our machines fully meet these requirements and thanks to their flexible architecture, can be tailored to individual customer specifications.
