SW class coil winding machines and winders
The first-class solution for automated and high-precision decoiling, recoiling and rewinding of wire, flat wire, cable, fiber optics, foils, tapes and fibers.
- Coil weight up to 25 Kg
- Coil diameter up to 460 mm
- Laying width up to 325 mm
- Coil traversing system
- Automatic tensioning system without shaft
- Automatic coil change optional
Winding Technology: Winding machines and systems for precise winding of wire and fibers
Winding Technology: Winding machines and systems for precise winding of wire and fibers
Application example of a SW class rewinding line
![SW class winder module](/application/files/8916/7518/5656/wicklermodul-der-sw-klasse-supertek.png)
SW class winder module
![spool drive unit](/application/files/5116/7518/5651/spulenantriebseinheit-supertek.png)
Coil drive unit
Drive for winding consisting of a powerful precision motor incl. motor driver for high speeds and high torque.
- Coil holders for many different coil types easy and quick to mount or change, available as standard item.
- Plug and play: easy and flexible mounting on the corresponding SW class coil winding units
- Electrical connection through the integrated connectors on the mounting plates without wiring effort or disturbing cables, or drag chains.
Article no.: SWLD42HSLV1
![spool holder](/application/files/9416/7518/5655/spulenhalterung-supertek.png)
Coil holder
Bracket for the automatic tensioning system without shaft for SW class winders.
- For mounting on a coil winding line unit for precise and secure fixing of a wide variety of coil shapes.
- Coil holders for many different types of coils easy and quick to mount or change, available as standard item.
- Plug and play: Simple and flexible mounting, on the associated SW class coil winding line units.
Article no.: SWLH01
![Automatic bobbin winder linear unit](/application/files/3816/7518/5648/automatische-spulenwickellineareinheit-supertek.png)
Automatic coil winding line unit
Fully electronic traversing system for straight-line unwinding and high-precision winding with optimum layer winding.
- High-resolution linear motors incl. motor drivers for two traversing mounting fixtures for a coil drive unit and an opposite automatically tensionable SW-class coil holder.
- Professional and precise traversing of coils with intelliegente linear drive.
- Automatic tensioning system with linear drive for secure holding of the spool without shaft.
- Clamping travel for a wide range of spools: 50-225 mm
- Total traverse path: 225 mm
- Plug and play: Simple and flexible assembly of the associated coil drive units and coil holder.
- Electrical connection of the coil drive unit through the integrated connectors on the mounting plate without wiring effort or disturbing drag chain.
- Simple control with the Winding Controller MCU and convenient operation with the SUMMI software and the associated control panels.
- Universal range of functions due to selectable software modules.
Article no.: SWL250H2

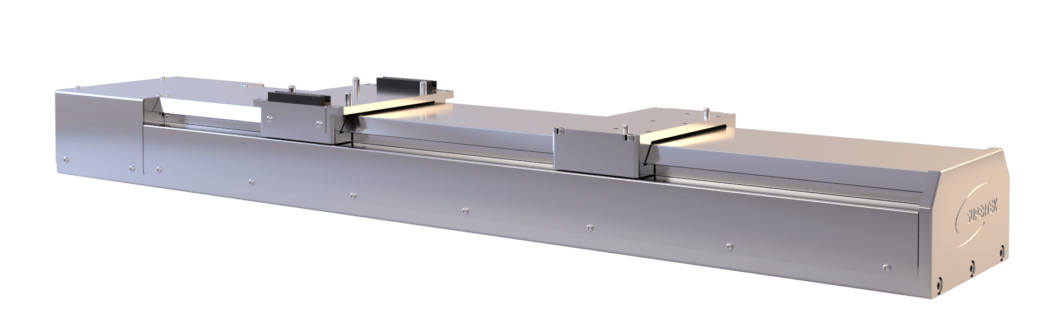

![Automatic bobbin winder linear unit long](https://www.winding-technology.com/application/files/thumbnails/xs/2616/7518/5647/automatische-spulenwickellineareinheit-lang-supertek.png)
Automatic coil winding line unit
As SWL250H2 but in longer version:
- Tensioning path for a wide variety of coils: 50-325 mm
- Total traverse path: 325 mm
Article no.: SWL350H2
Other coils
![Coil SD 200](/application/files/3516/7518/5685/spule-sd-200-supertek.png)
Coil SD 200
![Coil K 355](/application/files/6716/7518/5684/spule-k-355-supertek.png)
Coil K 355
![Coil HKL40](/application/files/6816/7518/5683/spule-hkl-40-supertek.png)
Coil HKL40
![Coil HKV 250](/application/files/8216/7518/5683/spule-hkv-250-supertek.png)
Coil HKV 250
![Cardboard coil](/application/files/7716/7518/5682/pappspule-supertek.png)
Cardboard coil

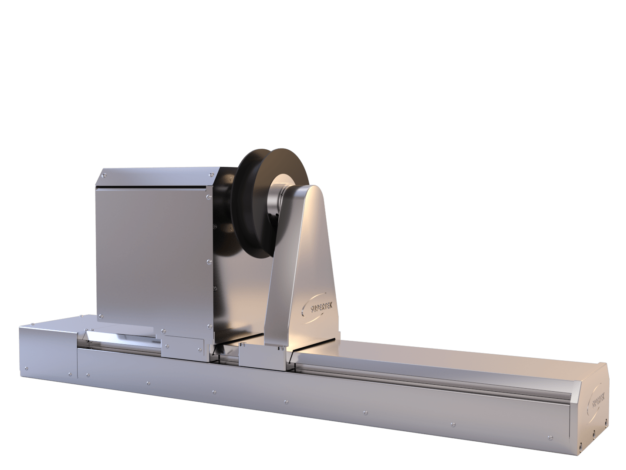

![Coil SI 200258](https://www.winding-technology.com/application/files/thumbnails/xs/5416/7518/5685/spule-sl-200258-supertek.png)
Coil SI 200258
