MW class winder
The professional solution for unwinding, winding and rewinding small and medium spools for wire and flat wire, foils, tapes and fibers.
- Coil weight up to 5 Kg
- Coil diameter up to 360 mm
- laying width up to 250 mm
- Coil traverse

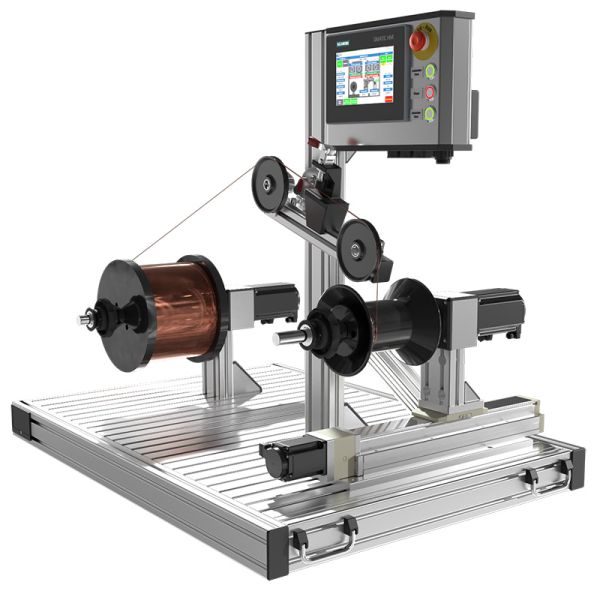

![Application example of a rewinding system of the MW class](/application/files/5816/7518/2493/umspulanlage-der-mw-klasse-supertek.png)
Application example of a MW class rewinding line
![MW class winder module](/application/files/8916/7518/2517/wicklermodul-der-mw-klasse-supertek.jpg)
MW class winder module
![spool drive unit](/application/files/4016/7518/3501/spulenantriebseinheit-supertek.png)
Coil drive unit
Coil drive for automated winding, unwinding or rewinding of coils.
- Coil weight up to 5 kg and coil diameter up to 360 mm.
- Spool mounting with flange and rotating shaft or shank, standard diameter 15mm.
- Mounting base for mounting on a machine frame or for mounting on a MW class coil winding line unit.
- Coil drive unit with high resolution motor.
- Incl. motor driver for control cabinet mounting.
Article no.: MWSAE15
![Automatic bobbin winder linear unit](/application/files/9616/7518/3499/automatische-spulenwickellineareinheit-supertek.png)
Automatic coil winding line unit 150
Traverse path: 150 mm
Linear drive for precise and automatic spooling, layer winding and rewinding.
- Travelling of the coil for straight and precise unwinding and rewinding.
- Mounting fixture for MW class coil drive unit, incl. drag chain for the supply line.
- Incl. motor driver for control cabinet installation.
- Easy control with the Winding Controller MCU and comfortable operation with SUMMI and the available control panels.
- Extensive range of functions thanks to the available software modules
Article no.: MWSLE150
![Automatic bobbin winder linear unit long](/application/files/8716/7518/3497/automatische-spulenwickellineareinheit-lang-supertek.png)
Automatic coil winding line unit 250
Traverse path: 250 mm
As MWSLE150 but with a linear actuator in a longer version.
Article no.: MWSLE250
![quick release](/application/files/9816/7518/3500/schnellverschluss-supertek.png)
Quick lock
Quick clamping system for manual, quick and easy, fixing of the coil on the shaft.
Standard shaft diameter: 15 mm.
Article no.: SV150
